Power audio amplifier with TDA 2030 for applications automotives 14 watts rms

TDA2030 is a circuit integrated monolithic in Pentawat® package, to be used as class audio amplifier AB. Typically he supplies up to 14 Watts of potency (d=0.5%) @ 14V/4Ω. The guaranteed potency is 12W in a load of 4Ω and 8 watts in a load of 8Ω. Integrated him/it bill with circuits of component protection.

Description of the circuit

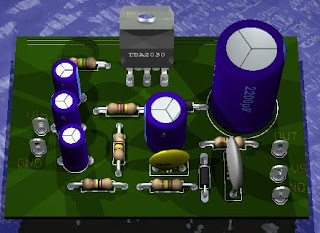

Audio amplifier with having integrated tda2030, using source of simple feeding, for potency of 14 watts with a source of 15 volts. That source should be with transformer, rectificators and good filter capacitors, there is not need of regulated source. for protection of the circuit to use a fuse of 3 amperes in the line of +b of the amplifier. Use a heat-sink of heat in the circuit integrated tda2030. See the datasheet of the tda 2030 to know which heat-sink to use. That integrated it is cheaply and easy to find at the market. For a version in bridge for until 28 watts@14v and version using symmetrical source sees the datasheet of the tda2030. That circuit can be fed by car batteries by good time without needing to recharge her. The tda2030 is usually found as amplifier of stage of potency of systems of home theater, it is in those that promise 1000 Watts of potency. For now a tda2030 supplies 14 watts, then 5 tda2030 supplies less than 100 watts rms. But that is a good idea, to use the tda2030 as amplifier of potency of systems surround, for the subwoofer the ideal is an assembly in bridge for more potency.

Resistors:
    R1:150KΩ
    R2: 4.7KΩ
    R3: 100KΩ
    R4: 1Ω 1W
    RA/RB: 100KΩ

Capacitors
    C1: 1µF 25V Electrolytic
    C2:2.2µF 25V Electrolytic
    C3:100nF polyester or ceramic
    C4:22µF/25 V ELECTROLYTIC
    C5: none
    C6: 220nF polyester or ceramic
    C7: 2200µF / 35V

Semiconductors
    IC1: TDA2030 or tda2030a
    D1/D2: 1n4002
